Atlas Basic

A cost-effective solution that fulfills your vertical transportation needs

Atlas Basic for Residential Buildings

Atlas Basic is a highly economical traction MRL solution for residential buildings. Serving rated loads of 375–1000kg, Atlas Basic is designed to offer both reduced total cost of ownership (TCO) and value for money.

Featuring KLEEMANN’s premium quality gearless motor, 2:1 suspension and speeds of up to 1.6m/s, Atlas Basic is equipped with a state-of-the-art inverter that minimises sound and ensures both outstanding ride quality and exceptionally low energy consumption.

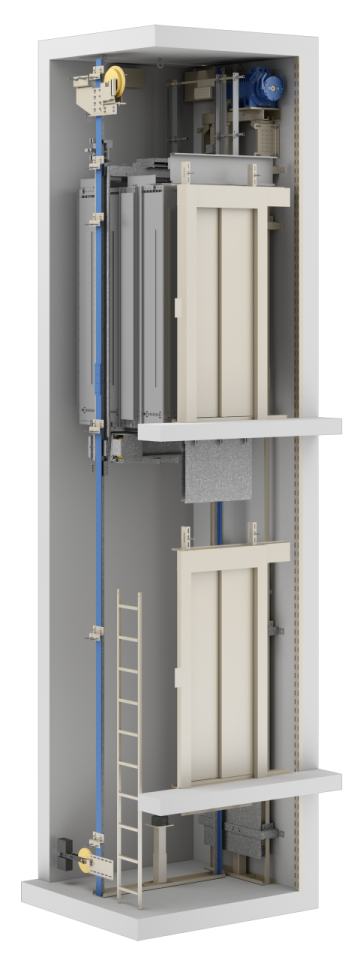

how-it-works

Advantages

Mix & match design
Mix & match all available materials offered by KLEEMANN standard range or create a product featuring your own floor and wall finishes that perfectly fits your space and meets your requirements.

Stopping accuracy
Due to its gearless motor and state-of-the-art inverter, Atlas Basic offers excellent stopping accuracy that does not exceed 2mm while the ride quality exceeds all quality standards (measurements based on ISO 18738).

Low noise levels
Gearless motor and state-of-the-art inverter combined with innovative design guarantees remarkably low noise levels inside and outside the cabin. The noise level inside the cabin (measured according to ISO 18738) during the lift operation reaches 52-54 dB (A).

Emergency evacuation
In the unlikely event of power failure, the emergency evacuation system ensures the safe transportation of passengers to the nearest floor where the doors automatically open as to allow the car exit.

Eco-design
Atlas Basic has been designed according to the Eco design principles (ISO 14006) and holds an Environmental Product Declaration in compliance with ISO 14025.

Scaffoldless installation
KLEEMANN has developed a cost saving scaffoldless method to install the Atlas Basic with minimum assistance from the builder.

Fast delivery
KLEEMANN provides record fast delivery for standard orders.

Downloads

Atlas Basic Brochure


Elevator Features

Anti-Vandal Lifts

Elevators in public places are often subject of abuse and attempts are often made to damage both their interior (COPs, Mirror, etc.) and their exterior (landing doors, LOPs etc.)

Destination Control System

The Destination Control System is an additional system which increases the efficiency of the lift operation and reduces waiting times.

Earthquake Resistant

Earthquakes are a natural phenomenon. KLEEMANN, in order to ensure safety in a lift, developed an earthquake resistant lift. Such an application, the first in Europe, assures that any lift hydraulic or traction can be turned to an earthquake resistant lift just by adding a few extra features.

Firefighting

Firefighting is a type of elevator which allows firefighters to use it in order to rescue people who may be trapped on upper floors during an event of fire in a building.

Green Lifts

Green lifts are a current trend and a market driver. The reason is that as the population grows the energy demand is increasing respectively. Some estimate that buildings consume about 40% of the world's energy, and elevators contribute almost 2% to 10% to the building's energy use.

Magic mirror

The Magic Mirror is an LCD display, which is functioning as a normal display while it is activated and as a full mirror while it is deactivated. The surface glass/mirror is constructed to be combined with the LCD display and it complies with the necessary surface, hardness and tension requirements.

Virtual Window

Virtual Window winGage by DigiGage is one of the world’s first immersive architecture & experience design elevator products. The display adapts the viewer’s point of view in real time, according to the elevator’s movement.

Specifications

ModelAtlas Basic
Rated Load (Kg)375-1000
Suspension2:1
Machine RoomMRL (MR)
Max Travel (m)45
Max Number of Stops16
Max Speed (m/s)1,6
Min Pit Depth (mm)v≤1.0 m/s 1100 , v=1.6 m/s 1250
Min Headroom (mm)v≤1.0 m/s 3400 , v≤1.6 m/s 3600
Complies withLifts Directive 2014/33/EU
