Atlas Gigas

The ideal option for high density passenger flow buildings with minimum waiting times

Atlas Gigas For Commercial & Public Buildings

Atlas Gigas is the first choice for a range of commercial and public buildings operating rated loads of 1050–2500kg. Offering the option to install a larger car in a standard-sized shaft, Atlas Gigas provides optimum space efficiency for buildings with high density passenger flow.

Atlas Gigas features KLEEMANN’s premium quality gearless motor and is equipped with a state-of-the-art inverter that provides outstanding ride quality and exceptionally low energy consumption and sound levels.

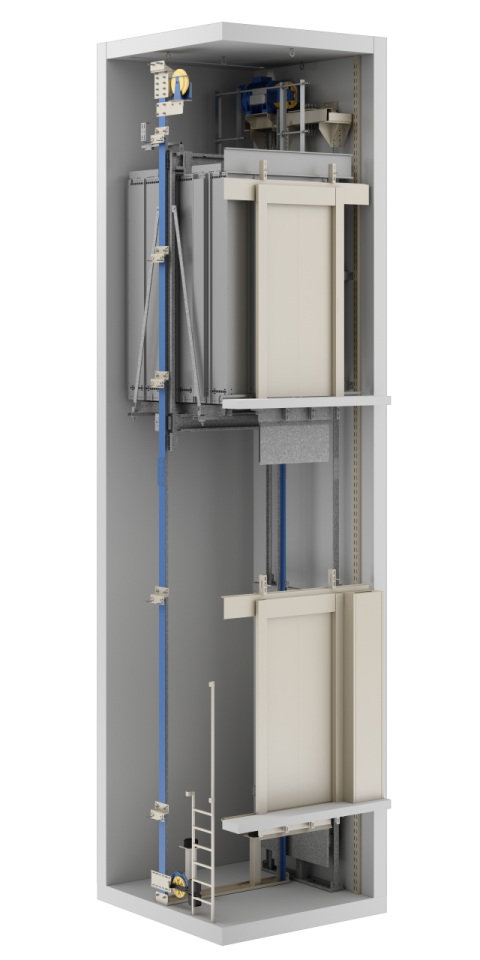

how-it-works

Advantages

Reliability
Atlas Gigas is equipped with certified safety components of the highest quality, ensuring the excellent lift operation, even for extremely demanding needs.

Spatial efficiency
Optimum space efficiency is granted for high density passenger flow provided by the capability for larger car installation in a standard shaft.

Extra safety features
Safety and durability in public buildings are enhanced with the special features for vandal resistant lifts (EN81-71), firefighting lifts (EN81-72) and earthquake resistant lifts (EN 81-77 or ASME A17.1).

Eco-design
Atlas Gigas has been designed according to the Eco design principles (ISO 14006) and holds an Environmental Product Declaration in compliance with ISO 14025.

Machine lifting system
Atlas Gigas is supplied with a machine lifting system, especially designed to facilitate the installation of high rated load lifts, hence, larger motors.

Fast delivery
KLEEMANN provides record fast delivery for standard orders.

Downloads

Atlas Gigas Brochure


Elevator Features

Anti-Vandal Lifts

Elevators in public places are often subject of abuse and attempts are often made to damage both their interior (COPs, Mirror, etc.) and their exterior (landing doors, LOPs etc.)

Destination Control System

The Destination Control System is an additional system which increases the efficiency of the lift operation and reduces waiting times.

Earthquake Resistant

Earthquakes are a natural phenomenon. KLEEMANN, in order to ensure safety in a lift, developed an earthquake resistant lift. Such an application, the first in Europe, assures that any lift hydraulic or traction can be turned to an earthquake resistant lift just by adding a few extra features.

Firefighting

Firefighting is a type of elevator which allows firefighters to use it in order to rescue people who may be trapped on upper floors during an event of fire in a building.

Green Lifts

Green lifts are a current trend and a market driver. The reason is that as the population grows the energy demand is increasing respectively. Some estimate that buildings consume about 40% of the world's energy, and elevators contribute almost 2% to 10% to the building's energy use.

Magic mirror

The Magic Mirror is an LCD display, which is functioning as a normal display while it is activated and as a full mirror while it is deactivated. The surface glass/mirror is constructed to be combined with the LCD display and it complies with the necessary surface, hardness and tension requirements.

Virtual Window

Virtual Window winGage by DigiGage is one of the world’s first immersive architecture & experience design elevator products. The display adapts the viewer’s point of view in real time, according to the elevator’s movement.

Specifications

ModelAtlas Gigas
Rated Load (Kg)1050-2500
Suspension2:1
Machine RoomMRL (MR)
Max Travel (m)45
Max Number of Stops16
Max Speed (m/s)1,6
Min Pit Depth (mm)v≤1.0 m/s 1100 , v=1.6 m/s 1270
Min Headroom (mm)v≤1.0 m/s 3800 , v≤1.6 m/s 4000
Complies withLifts Directive 2014/33/EU
