Parking Systems

Installation of Hydraulic Car Parking Systems provides additional independent parking spaces for 2 vehicles.
These systems can be customized to fix existing spaces and are an ideal solution when multiple parking spaces
are required in new builds.

Constructed according to the Machinery Directive 2006/42/EC Car Parking Systems are suitable for a wide range of vehicles.

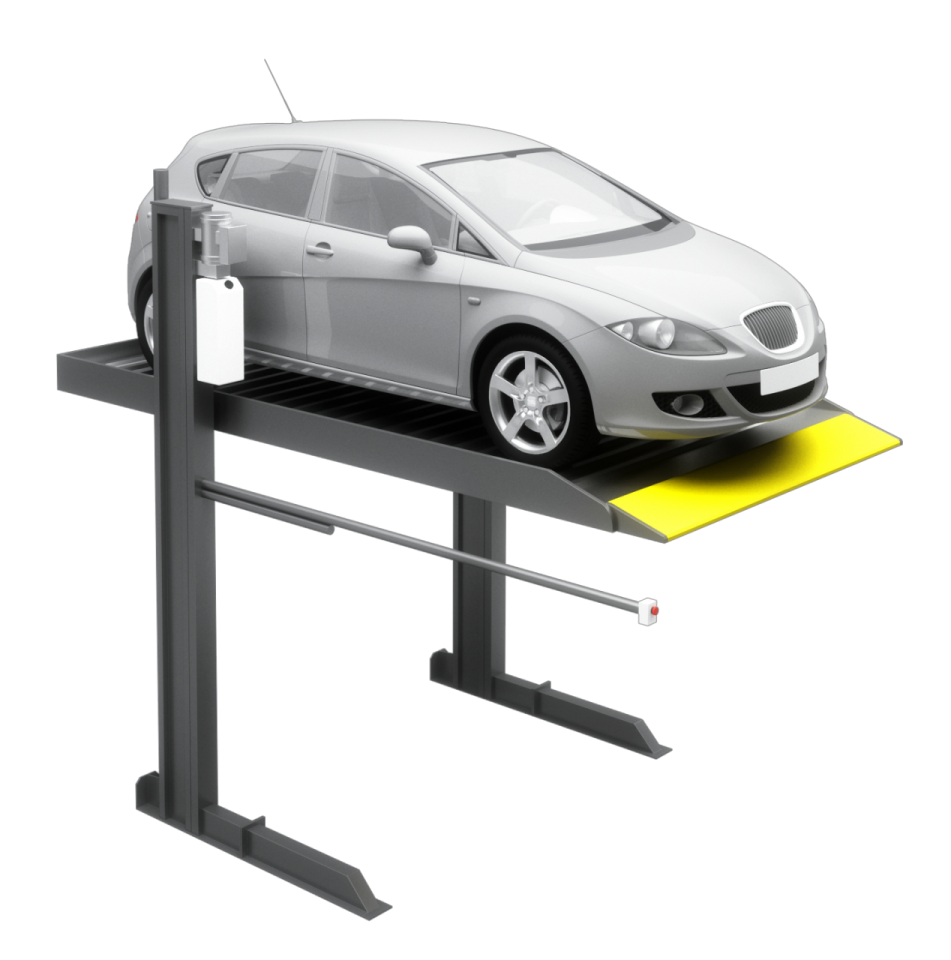

how-it-works

Advantages

  • Great variety of types
  • Suitable for different vehicle's height and building available height
  • Low usage cost
  • Fast and easy installation
  • Sharing post feature
  • Dynamic locking device
  • Self standing and self support structure
  • Can be relocated
  • Platform can stop at defferent heights
  • Hydraulic overload protection
  • CE Marking

Specifications

ModelHydro Park 1127Hydro Park 1123Hydro park TPTP-2
Rated Load (Kg)270023002000
Equipment weight (Kg)11001000850
Lifting height2100mm2100mm1600mm
Power Supply220-420V, 1-3phase, 50/60Hz220-420V, 1-3phase, 50/60Hz220-420V, 1-3phase, 50/60Hz
Control power24V24V24V
Lock deviceDynamicDynamicDynamic
Lock releaseElectric auto releaseElectric auto releaseElectric auto release
OperationKey switchKey switchKey switch
Power unit2,2Kw hydraulic power pump2,2Kw hydraulic power pump2,2Kw hydraulic
power pump
Lifting/lowing time50/45 sec50/45 sec<45 sec
FinishingPowder coating/ galvanizedPowder coating/ galvanizedPowder
coating/ galvanized
Basement height--Suitable for
basements with
available height 3000mm
