Puzzle Parking Systems

KLEEMANN Puzzle Parking Systems have been designed to provide a range of intelligent multi-storey parking solutions
that enable independent parking of multiple cars. The selected parking space is moved to the desired position by means of
an automatic control systemand the parking spaces can be shifted vertically or horizontally. KLEEMANN Puzzle Parking
Systemsintegrate the latest advancements in stacking and sliding technology, maximising the number of vehicles that can be
accommodated in the available space.

Featuring anti-fall mechanisms, hydraulic overload protection and excellent energy efficiency, KLEEMANN Puzzle
Parking Systems deliver reliable, practical and cost-effective parking solutions tofulfil all multi-story parking requirements.

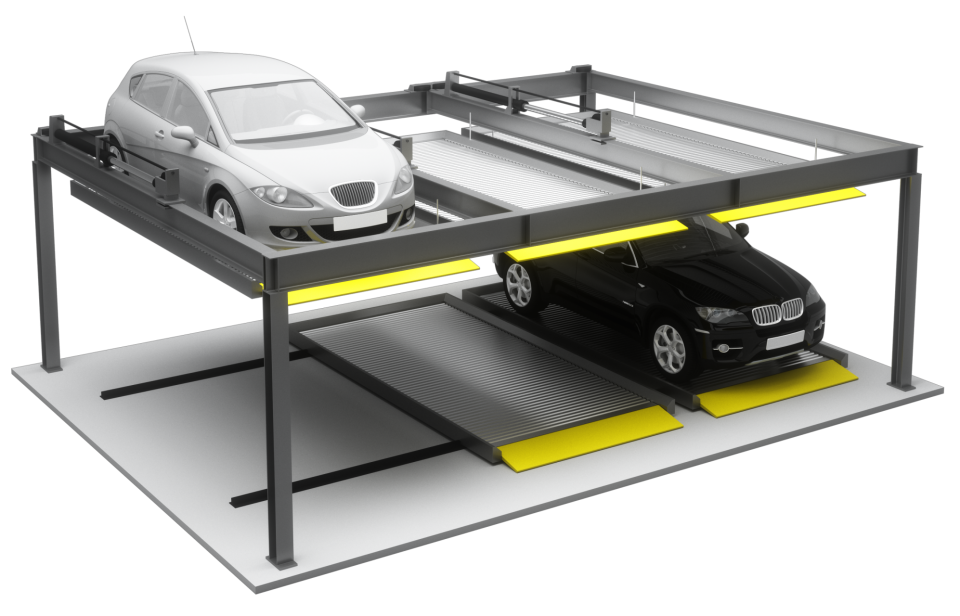

how-it-works

Specifications

ModelBDP-2
Levels2
Available car dimensions1850*5070*1550-2050mm
Rated Load (Kg)2000-2500kg
Drive modeHydraulic cylinder + wipe ropes
OperationCode, Card, Manual
ControlPLC centralized control system
Elevating speed8-12 m/min
Sliding speed7,5m/min
Power Supply3phase/380V/50-60Hz
FinishingPowder coating

Advantages

  • Independent parking in 2 levels
  • Easy operation and parking comfort
  • Code - IC card and manual operation
  • Central hydraulic power pack and control panel, with PLC control system
  • Reliable mechanical anti-falling protection
  • Hydraulic overloading protection
  • CE marking
