Scissor Lift Platforms

KLEEMANN single and double Scissor Lift Platforms provide a simple and convenient way to facilitate and optimise parking space.
Suitable for underground, lower and upper parking levels, KLEEMANN Scissor Lift Platforms are an ideal choice for parking areas where
entrances and exits are restricted or limited.

KOffering up to 3 stops, an array of safety features and the choice of either 4000mm or 7400mm vertical travel, KLEEMANN Scissor
Lift Platforms present an intelligent solution for the creation of practical and convenient access to all types of parking spaces.

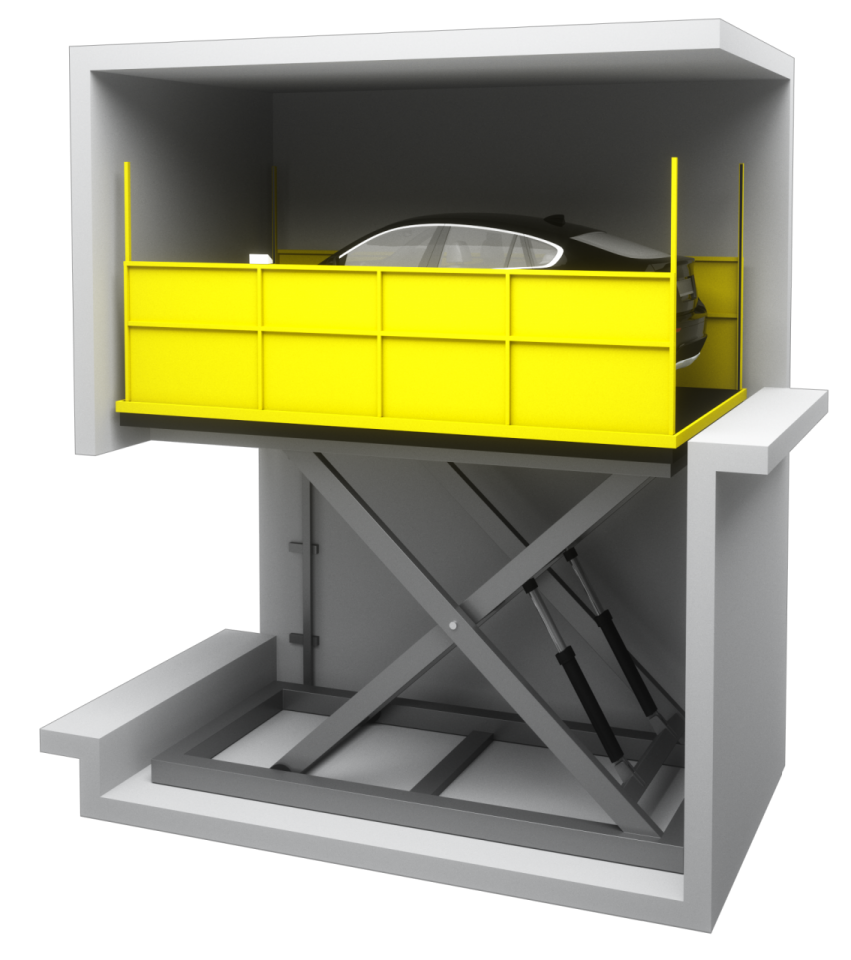

how-it-works

Specifications

ModelSingle Scissor PlatformDouble Scissor Platform
Rated Load (Kg)30003000
Max Travel (m)4000mm7400mm
Stops23
Platformmax 3000*6000mmmax 3000*6000mm
Speed0,05-0,08m/sec0,05-0,08m/sec
Pit depth (mm)min 500mmmin 600mm
Headroom (mm)min 2500mmmin 2500mm
Motor5,5Hp/380V/50Hz7,5Hp/380V/50Hz
Pistons - Cylinder2 items Φ70–Φ120Χ1352 items Φ80–Φ140Χ160
Complies withMachinery Directive
2006/42/EC - EC type
examination certificate		Machinery Directive
2006/42/EC - EC type
examination certificate
Landing doorsRoller shutters with single phase motorRoller shutters with single phase motor
