freeSTAIR for wheelchair

Designed to enable wheelchair users to move with autonomy, safety and comfort

freeSTAIR for wheelchair

The freeSTAIR for wheelchairs has been designed to enable wheelchair users to move with autonomy, safety and comfort, offering access to any building where the installation or use of a conventional lift is not possible. The system can be installed in both indoor and outdoor spaces, and mounted either on the wall or on the floor. It is the ideal solution for both public and private spaces.

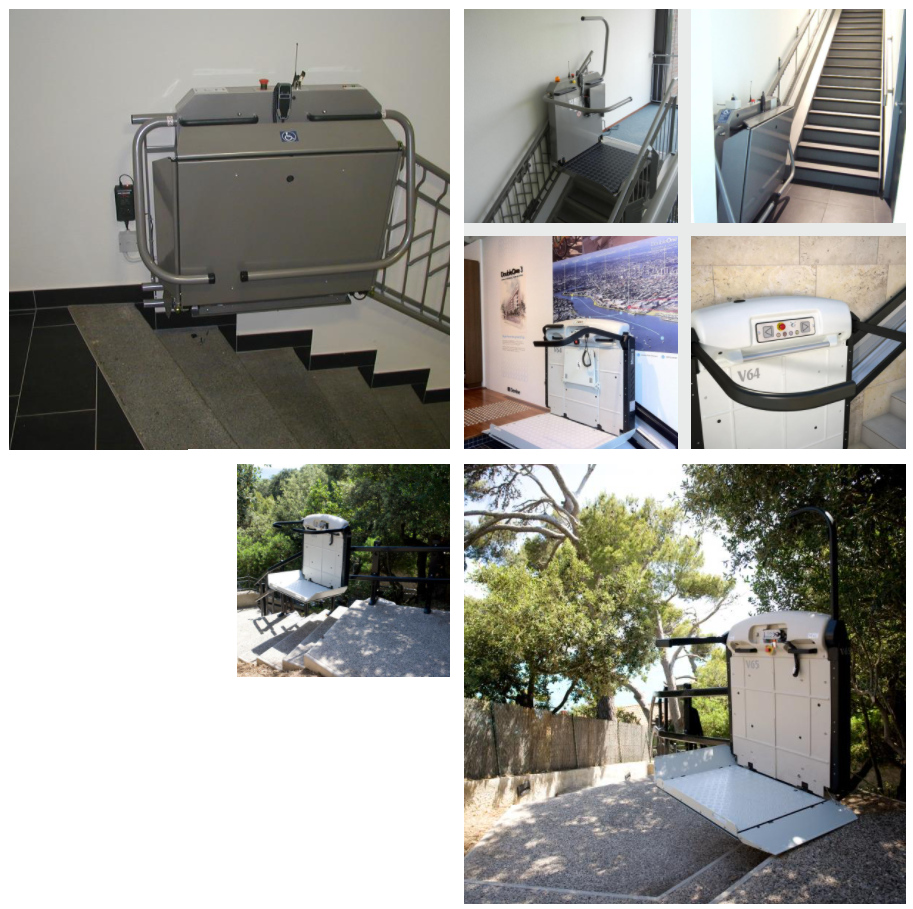

how-it-works

Advantages

  • Installed on either right or left side of staircases
  • Multiple mounted solutions for guide rails
  • Wide range of platform dimensions
  • Robust construction
  • Minimum space and maintenance requirements

Specifications

ModelT100 Platform T80 Platform V64 V65 Delta STRATOS
Rated Load (Kg)300 300 300 300 300 300
InstallationIndoors/Outdoors Indoors/Outdoors Indoors/Outdoors Indoors/Outdoors Indoor/Outdoor Indoor/Outdoor
Inclination (degrees)15-45 0-60 7-50 0-45 Up to 52 0-47
Platform sizes (mm)750*1000 or 800*1000 - Special sizes are possible up to 900X1500
680*840, 700*900, 750*1000, 800x1000 - Special sizes are possible up to 900*1200mm
830*700,1050*770 with independent or retractable arms 1250*800 only with independent arms
830*700,1050*770 with independent or retractable arms 1250*800 only with independent arms
700x750, 750x850, 800x900, 800x1000 Special Up to 900x1250700x750, 750x850, 800x900, 800x1000 Special Up to 900x1250mm
ColoursRAL 7047-8022-9002-9007 RAL 7032-7047-8022-9002-9006-9007 Unit RAL 9018- Rail Black RAL 9005 Unit RAL 9018- Rail Black RAL 9005
Unit RAL 7035 Rail anodized aluminum Unit RAL 7035 Rail Painted at RAL or St/St Special colors after request
Motor24V DC/ 0,42Kw 24V DC/ 0,42Kw 220V/0,75Kw 24V DC/ 1Kw 24V DC/0,5kW 24V DC/0,5kW
Speed0,08 m/sec max 0,15 m/sec 0,07 m/sec 0,13 m/sec 0,10 m/sec 0,10 m/sec
Safety systemsSafety gear - "Hold to run" controls Safety gear - "Hold to run" controls Safety gear - "Hold to run" controls Safety gear - "Hold to run" controls
Complies withMachinery Directive 2006/42/EC - EC type examination certificate Machinery Directive 2006/42/EC - EC type examination certificate
Machinery Directive 2006/42/EC - EC declaration of conformity Machinery Directive 2006/42/EC - EC declaration of conformity

Extra Features

  • Indoor or outdoor installation
  • Variety of metal structure colours
  • Seat adjustable to platform (optional)
  • Remote control with ‘hold to run’ buttons
  • EC Type Examination Certificate
