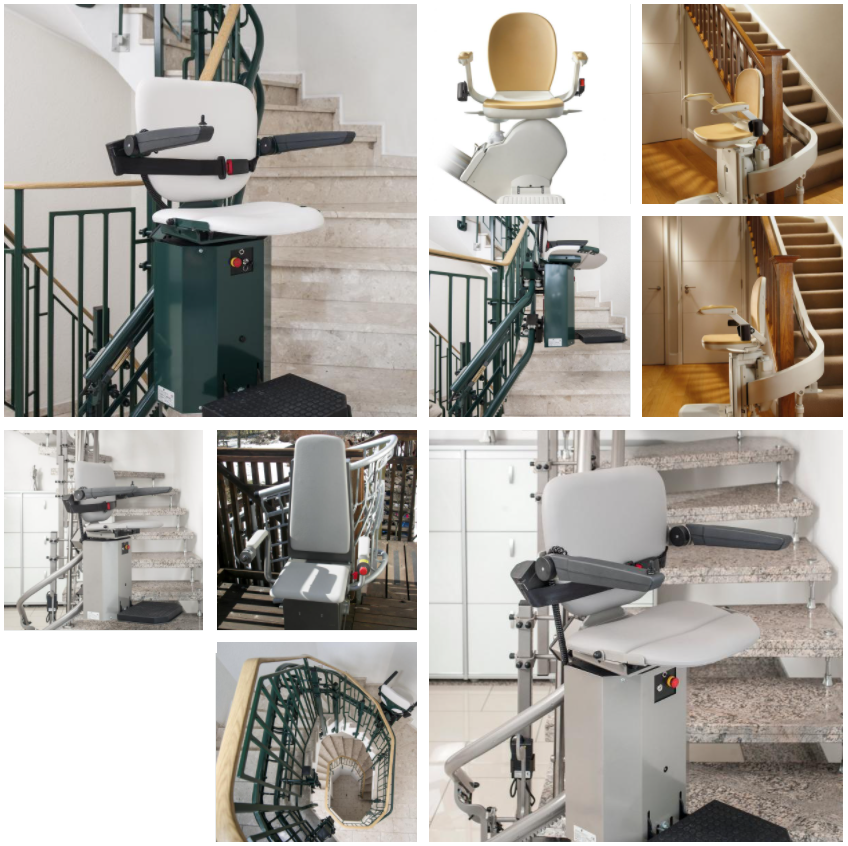

freeSTAIR with seat
The freeSTAIR system with seat has been specially designed to help users of all ages who have difficulty climbing stairs. The system is custom-made for each individual application, so can be fitted to any staircase – either indoor or outdoor, and in houses with both straight and curved staircases. The KLEEMANN freeSTAIR system with seat is available in a number of different models, providing solutions to meet the needs of any user.
Advantages
- Installed on either right or left side of the staircase
- Minimum installation space required
- Multiple mounted solutions for guide rails
- Seat folds neatly away to save space
- Minimal maintenance requirements
Specifications
| Model | KSL 200A 130A 180T80 Stairlift Alpha |
| TypeStraight | Straight / CircularStraightStraight / CircularStraight / CircularStraight / Circular |
| Rated Load (Kg) | 130 127 120 225 130 (optional 145) |
| Installation | Indoors/Outdoors Indoors/Outdoors Indoors Indoors/Outdoors Indoor/Outdoor |
| Max Travel - Stops | 4 Stops 2 Stops 4 Stops 4 Stops 4 Stops |
| Max Speed (m/s) | 0,1 0,1 0,1 0,1 0,1 |
| Inclination (degrees) | 0-70 27-55 0-58 0-60 0-52 |
| Power Supply | Rechargeable batteries Rechargeable batteries Rechargeable batteries Rechargeable batteries Rechargeable batteries |
| Required staircase width | 90 80 90 90 90 |
| Motor Power | 24V DC/0,35Kw 24V DC/0,25Kw 24V DC/0,375Kw 24V DC/0,55Kw 24V DC/0,35kW |
Extra Features
- Indoor or outdoor installation
- Designed for maximum safety and comfort
- Remote control with ‘hold to run’ buttons
- Variety of seat and metal structure colours
- EC Declaration of Conformity
