Atlas RPH

A practical solution for buildings with pit and headroom limitations

Atlas RPH for Residential Buildings

Atlas RPH provides a practical traction MRL solution for residential buildings with pit and headroom limitations. Suitable for rated loads up to 1050kg, Atlas RPH features KLEEMANN’s premium quality gearless motor, 2:1 suspension and speeds of up to 1m/s. The state-of-the-art inverter minimises noise and delivers outstanding ride quality and exceptionally low energy consumption.

Ideal for the modernisation of existing lifts and those with narrow shafts, Atlas RPH strictly complies with Lifts Directive 2014/33/EC and standard EN81-21.

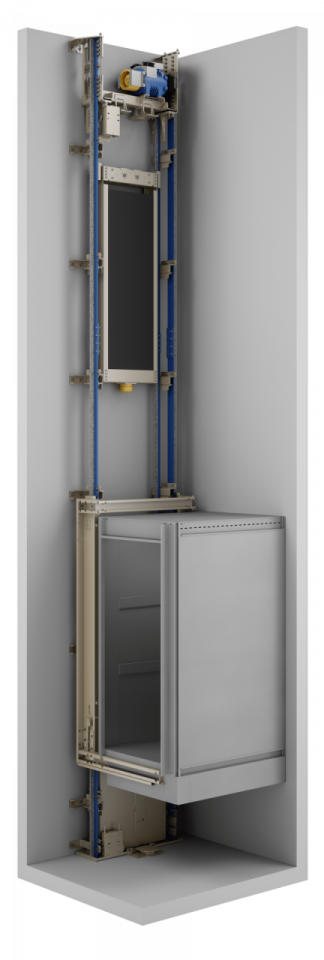

how-it-works

Advantages

World class design
A wide range of cabin types and operating panels has been specifically created for KLEEMANN by the industrial designer Andreas Zapatinas.

Spatial efficiency
Suitable for buildings with reduced pit and headroom, Atlas RPH is Ideal for modernisation of existing lifts. Designed to support the installation of up to three cabin doors.

Low noise levels
Gearless motor and state-of-the-art inverter combined with innovative design guarantees remarkably low noise levels inside and outside the cabin. The noise level inside the cabin (measured according to ISO 18738) during the lift operation reaches 52-54 dB (A).

Safe door closing
Atlas RPH is equipped with light curtains to provide additional safety and protection to the passenger when the car doors are closing.

Emergency evacuation
In the unlikely event of power failure, the emergency evacuation system ensures the safe transportation of passengers to the nearest floor where the doors automatically open as to allow the car exit.

Eco-friendly
Energy saving product which reduces CO2 emission up to 60% using a regeneration drive, stand-by-mode and led lighting.

Ease of installation
Atlas RPH needs only one wall for the installation with most of the subunits pre-assembled and ready to be installed.

Fast delivery
KLEEMANN provides record fast delivery for standard orders.

Downloads

Atlas RPH Brochure


Elevator Features

Anti-Vandal Lifts

Elevators in public places are often subject of abuse and attempts are often made to damage both their interior (COPs, Mirror, etc.) and their exterior (landing doors, LOPs etc.)

Destination Control System

The Destination Control System is an additional system which increases the efficiency of the lift operation and reduces waiting times.

Earthquake Resistant

Earthquakes are a natural phenomenon. KLEEMANN, in order to ensure safety in a lift, developed an earthquake resistant lift. Such an application, the first in Europe, assures that any lift hydraulic or traction can be turned to an earthquake resistant lift just by adding a few extra features.

Firefighting

Firefighting is a type of elevator which allows firefighters to use it in order to rescue people who may be trapped on upper floors during an event of fire in a building.

Green Lifts

Green lifts are a current trend and a market driver. The reason is that as the population grows the energy demand is increasing respectively. Some estimate that buildings consume about 40% of the world's energy, and elevators contribute almost 2% to 10% to the building's energy use.

Magic mirror

The Magic Mirror is an LCD display, which is functioning as a normal display while it is activated and as a full mirror while it is deactivated. The surface glass/mirror is constructed to be combined with the LCD display and it complies with the necessary surface, hardness and tension requirements.

Virtual Window

Virtual Window winGage by DigiGage is one of the world’s first immersive architecture & experience design elevator products. The display adapts the viewer’s point of view in real time, according to the elevator’s movement.

Specifications

ModelAtlas RPH
Rated Load (Kg)525-1050
Suspension2:1
Machine RoomMRL
Max Travel (m)40
Max Number of Stops14
Max Speed (m/s)1,0
Min Pit Depth (mm)320
Min Headroom (mm)2600
Complies withLifts Directive 2014/33/EU
