Atlas Super Gigas

A traction solution for freight transportation up to 5000kg, fully exploiting the shaft space

Atlas Super Gigas for Industrial Buildings

Atlas Super Gigas is the ideal solution for freight transportation of rated loads between 2500–5000kg. A practical option for industrial uses, it is equipped with KLEEMANN’s premium quality gearless motor and state-of-the-art inverter, guaranteeing reliable performance, excellent ride quality and low energy consumption.

Atlas Super Gigas is designed to fully exploit the shaft space and facilitate installation and maintenance. Featuring tailored cargo lift struts, it offers a robust and reliable lift solution for all your industrial needs.

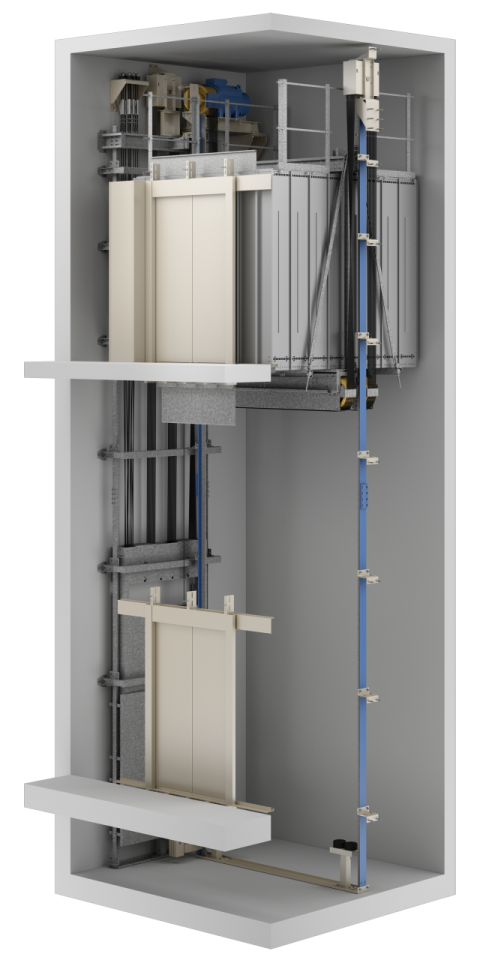

how-it-works

Advantages

Οutstanding ride quality
Premium quality and exceptional ride comfort are delivered by both a gearless motor and a state-of-the-art inverter.

Spatial efficiency
Optimum space efficiency by offering the option of a larger car installation in a standard shaft for rated loads up to 5000kg.

Safe door closing
Atlas Super Gigas is equipped with light curtains to provide additional safety and protection to the passenger when the car doors are closing.

Extra safety features
Safety and durability in public buildings are enhanced with the special features for vandal resistant lifts (EN81-71), firefighting lifts (EN81-72) and earthquake resistant lifts (EN 81-77 or ASME A17.1).

Downloads

Atlas Super Gigas Brochure


Elevator Features

Anti-Vandal Lifts

Elevators in public places are often subject of abuse and attempts are often made to damage both their interior (COPs, Mirror, etc.) and their exterior (landing doors, LOPs etc.)

Destination Control System

The Destination Control System is an additional system which increases the efficiency of the lift operation and reduces waiting times.

Earthquake Resistant

Earthquakes are a natural phenomenon. KLEEMANN, in order to ensure safety in a lift, developed an earthquake resistant lift. Such an application, the first in Europe, assures that any lift hydraulic or traction can be turned to an earthquake resistant lift just by adding a few extra features.

Firefighting

Firefighting is a type of elevator which allows firefighters to use it in order to rescue people who may be trapped on upper floors during an event of fire in a building.

Green Lifts

Green lifts are a current trend and a market driver. The reason is that as the population grows the energy demand is increasing respectively. Some estimate that buildings consume about 40% of the world's energy, and elevators contribute almost 2% to 10% to the building's energy use.

Magic mirror

The Magic Mirror is an LCD display, which is functioning as a normal display while it is activated and as a full mirror while it is deactivated. The surface glass/mirror is constructed to be combined with the LCD display and it complies with the necessary surface, hardness and tension requirements.

Virtual Window

Virtual Window winGage by DigiGage is one of the world’s first immersive architecture & experience design elevator products. The display adapts the viewer’s point of view in real time, according to the elevator’s movement.

Specifications

ModelAtlas Super Gigas
Rated Load (Kg)2500-5000
Suspension4:1
Machine RoomMRL
Max Travel (m)45
Max Number of Stops16
Max Speed (m/s)1,0
Min Pit Depth (mm)1400
Min Headroom (mm)3900
Complies withLifts Directive 2014/33/EU
