Compact

Hydraulic hoisting lift for freight, designed primarily for industrial facilities and warehouses

Compact for Industrial Buildings

Compact is a hydraulic hoisting lift for freight, designed primarily for industrial facilities and warehouses, with no requirements for separate machine room.

Fully compliant with Machinery Directive 2006/42/EC, Compact is a dependable working tool, characterised by its reliable performance and endurance under harsh working conditions. You create the specifications for your Compact. Flexible production enables us to meet your individual requirements with ease.

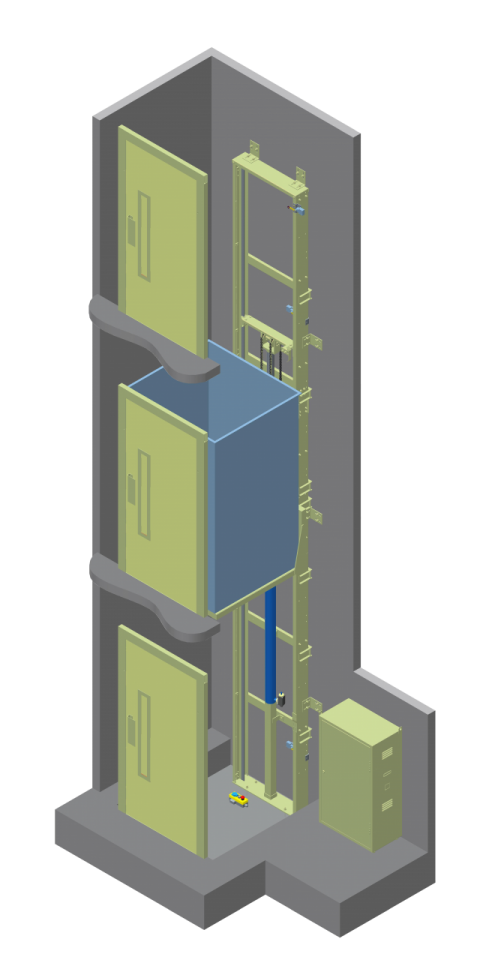

how-it-works

Advantages

Robust construction
Reliability of performance, endurance to large freights and harsh work conditions.

Spatial efficiency
No requirement for separate machine room, as it is provided with a lockable cabinet.

Customised solution
Compact is designed according to your building and task requirements

Fast delivery
KLEEMANN provides record fast delivery for standard orders.

Downloads

Compact Brochure


Elevator Features

Anti-Vandal Lifts

Elevators in public places are often subject of abuse and attempts are often made to damage both their interior (COPs, Mirror, etc.) and their exterior (landing doors, LOPs etc.)

Destination Control System

The Destination Control System is an additional system which increases the efficiency of the lift operation and reduces waiting times.

Earthquake Resistant

Earthquakes are a natural phenomenon. KLEEMANN, in order to ensure safety in a lift, developed an earthquake resistant lift. Such an application, the first in Europe, assures that any lift hydraulic or traction can be turned to an earthquake resistant lift just by adding a few extra features.

Firefighting

Firefighting is a type of elevator which allows firefighters to use it in order to rescue people who may be trapped on upper floors during an event of fire in a building.

Green Lifts

Green lifts are a current trend and a market driver. The reason is that as the population grows the energy demand is increasing respectively. Some estimate that buildings consume about 40% of the world's energy, and elevators contribute almost 2% to 10% to the building's energy use.

Magic mirror

The Magic Mirror is an LCD display, which is functioning as a normal display while it is activated and as a full mirror while it is deactivated. The surface glass/mirror is constructed to be combined with the LCD display and it complies with the necessary surface, hardness and tension requirements.

Virtual Window

Virtual Window winGage by DigiGage is one of the world’s first immersive architecture & experience design elevator products. The display adapts the viewer’s point of view in real time, according to the elevator’s movement.

Specifications

ModelCompact
Rated Load (Kg)300-2000
Suspension1:2
Machine RoomMRL with controller cabinet
Max Travel (m)11,5
Max Number of Stops4
Max Speed (m/s)0,15
Min Pit Depth (mm)220-460
Min Headroom (mm)2200-2260
Complies withMachinery Directive 2006/42/EC
