HRS for Hotels

An excellent option which ensures reduced waiting times offering exquisite design options

HRS For Hotels

The new high speed HRS KLEEMANN Lift is an excellent solution for state-of-the-art hotels. Offering outstanding ride quality, HRS KLEEMANN combines passenger comfort with innovative lift monitoring technology to deliver impressive results. The Remote Lift Monitoring system provides a central information system that enables the efficient and simultaneous management of up to 18 lifts, perfect for larger hotels operating high density passenger flow. Destination Control ensures reduced waiting times and a smooth and stress-free passenger experience.

Featuring a maximum speed of up to 4m/sec, HRS KLEEMANN provides a series of advantages and innovations.

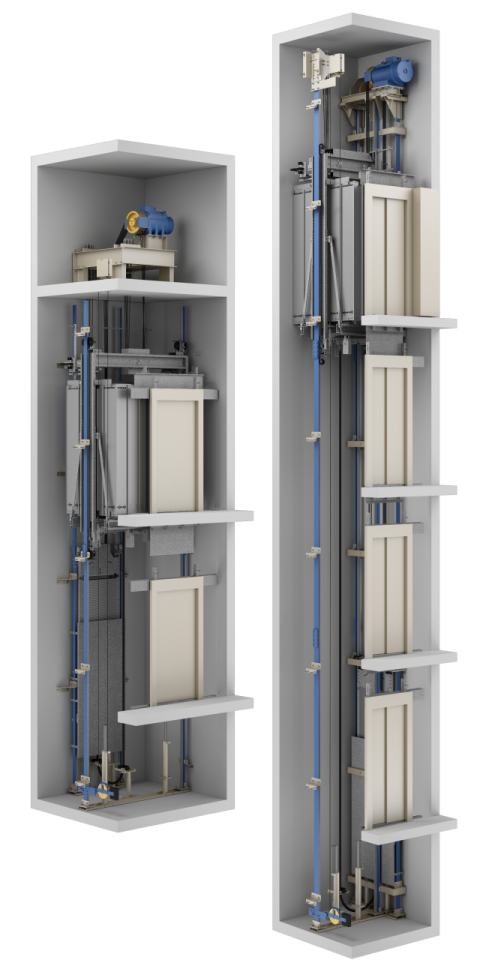

how-it-works

Advantages

Unique tailor-made design
KLEEMANN special Design team serves as the creating force behind the development of lifts for your challenging projects.

Ride quality
The isolated roller guide shoes limit vibrations and offer outstanding ride quality and cost saving. Due to the spring system and the permanent contact with the guide rail, the high-quality rollers are granted with an exceptionally long service life.

Remote Lift Monitoring System
Providing the opportunity for improved lift management, the Remote Lift Monitoring System is an excellent solution for buildings with multiple lifts.

Reduced waiting times
The Destination Control System reduces waiting times by serving the increased number of calls, where it is important for the passengers to be transported rapidly.

Extra safety features
Safety and durability in public buildings are enhanced with the special features for vandal resistant lifts (EN81-71), firefighting lifts (EN81-72) and earthquake resistant lifts (EN 81-77 or ASME A17.1).

Eco-friendly
Energy saving product which reduces CO2 emission up to 60% using a regeneration drive, stand-by-mode and led lighting.

Elevator Features

Anti-Vandal Lifts

Elevators in public places are often subject of abuse and attempts are often made to damage both their interior (COPs, Mirror, etc.) and their exterior (landing doors, LOPs etc.)

Destination Control System

The Destination Control System is an additional system which increases the efficiency of the lift operation and reduces waiting times.

Earthquake Resistant

Earthquakes are a natural phenomenon. KLEEMANN, in order to ensure safety in a lift, developed an earthquake resistant lift. Such an application, the first in Europe, assures that any lift hydraulic or traction can be turned to an earthquake resistant lift just by adding a few extra features.

Firefighting

Firefighting is a type of elevator which allows firefighters to use it in order to rescue people who may be trapped on upper floors during an event of fire in a building.

Green Lifts

Green lifts are a current trend and a market driver. The reason is that as the population grows the energy demand is increasing respectively. Some estimate that buildings consume about 40% of the world's energy, and elevators contribute almost 2% to 10% to the building's energy use.

Magic mirror

The Magic Mirror is an LCD display, which is functioning as a normal display while it is activated and as a full mirror while it is deactivated. The surface glass/mirror is constructed to be combined with the LCD display and it complies with the necessary surface, hardness and tension requirements.

Virtual Window

Virtual Window winGage by DigiGage is one of the world’s first immersive architecture & experience design elevator products. The display adapts the viewer’s point of view in real time, according to the elevator’s movement.

Specifications

ModelHRS (MRL)HRS (MR)
Rated Load (Kg)630-12751000-1600
Suspension2:12:1
Machine RoomMRLMR
Max Travel (m)150150
Max Number of Stops4747
Max Speed (m/s)2.0-2.52.0-2.5-3.0-4.0
Min Pit Depth (mm)v=2,0 m/s 1800v=2,0 m/s 1800
Min Pit Depth (mm)v=2,5m/s 1950v=2,5m/s 1950
Min Pit Depth (mm)-v=3,0 m/s 1950
Min Pit Depth (mm)-v=4,0m/s 3800
Min Headroom (mm)v=2,0 m/s 4450 (630-1000kg)v=2,0 m/s 4140
Min Headroom (mm)v=2,0 m/s 4500 (1275kg)v=2,5m/s 4380
Min Headroom (mm)v=2,5 m/s 4700 (630-800kg)v=3,0 m/s 4470
Min Headroom (mm)v=2,5 m/s 4750 (1000-1275kg)v=4,0m/s 4680
Complies withLifts Directive 2014/33/EU
** For external cabin height 2340mm
