MaisonLIFT Plus for Home Solutions

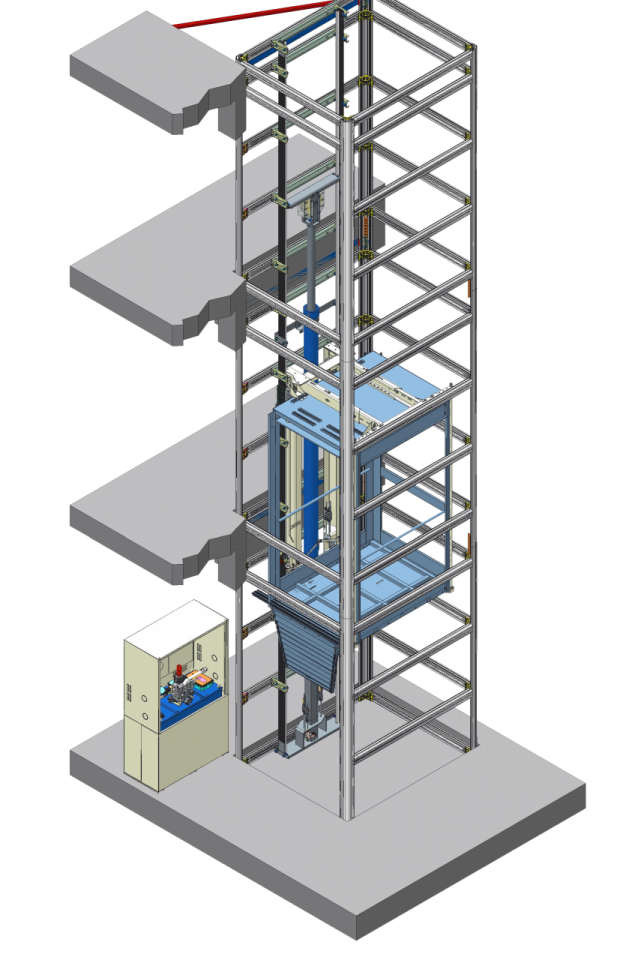

Unique tailor-made design options to upgrade your space. MaisonLIFT Plus provides convenience with a more sophisticated approach. This indirect acting hydraulic lift is suitable for vertical transportation inside or outside a multi-storey residence. MaisonLIFT Plus can be installed in multiple types of residential buildings with shaft pit and headroom limitations. It is also available with aluminium shaft construction.
Advantages
Unique tailor-made design
KLEEMANN special Design team serves as the creating force behind the development of lifts for your challenging projects.
Spatial efficiency
MaisonLIFT Plus has no requirements for extra space for machine room and is ideal for low pit and headroom applications.
Self-supported shaft
MaisonLIFT Plus is offered with aluminum construction, self-supported or fitted on to the wall, where concrete shaft is not available.
Green features
MaisonLIFT Plus is a hydraulic solution with green features: biodegradable oil, LED lighting and energy saving controller.
Certified product
MaisonLIFT Plus fulfills the requirements of Lift Directive 2014/33/EC and holds an EC Type Examination Certificate.
Emergency evacuation
In the unlikely event of power failure, the emergency evacuation system ensures the safe transportation of passengers to the nearest floor where the doors automatically open as to allow the car exit.
Fast delivery
KLEEMANN provides record fast delivery for standard orders.
Elevator Features
Specifications
| Model | MaisonLIFT Plus | |
| Rated Load (Kg) | 180-630 | 180-1000 |
| Suspension | 1:2 | 1:2 |
| Machine Room | MRL with controller cabinet | MRL with controller cabinet |
| Max Travel (m) | 19 | 20 |
| Max Number of Stops | 8 | 8 |
| Max Speed (m/s) | 0,52 | 0,520,15 – 0,3* available for orders outside the EU |
| Min Pit Depth (mm) | 200 | 100 |
| Min Headroom (mm) | 2600 | 2450 |
| Complies with | Lifts Directive 2014/33/EU | Machinery Directive 2006/42/EC |
