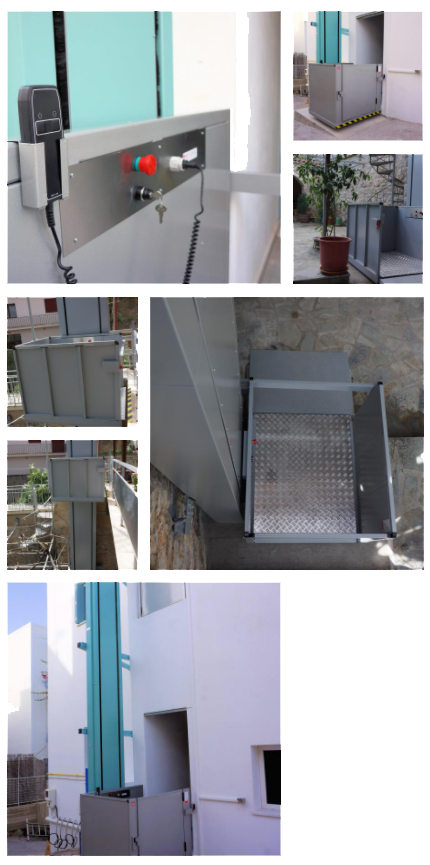

freeSTAIR Hydraulic Lifting System (Vertiplat)
The freeSTAIR Hydraulic Vertical Lifting System (Vertiplat) has been designed for users with limited mobility, enabling access to buildings where installation or operation of a lift is not possible. It is the most cost-effective solution for vertical transportation of up to 7m. The system requires minimum space, making it an ideal solution for both internal and external applications.
Advantages
- Minimum installation space requirements
- Fast and easy fitting of the system
- Minimum maintenance requirements
Specifications
| Model | freeSTAIR Hydraulic Lifting System (Vertiplat) |
| Rated Load (Kg) | 300 |
| Max Travel (m) | 7m (total) |
| Max Speed (m/s) | 0,10 |
| Min Pit Depth (mm) | 120 |
| Complies with | Machinery Directive 2006/42/EC |
| Power Supply | Single or 3 phase motor 50/60 Hz |
Extra Features
- Indoor or outdoor installation
- Variety of colours and paint quality
- Suitable for total travel up to 7m
- EC Type Examination Certificate
